| Rigaku TTRAX 3 |
θ/θ design for horizontal sample mounting
High intensity X-ray source from 18 kW rotating anode
CBO for focusing and parallel beam geometries without reconfiguration
In-plane diffraction arm for in-plane measurements without reconfiguration
High-resolution optics
SAXS capabilities |
|
|
|
|
| Rigaku Stress Analyzer: Automate |
|
|
|
|
| Rigaku portable Stress Analyzer: SmartSite RS |
Portable, Rapid and well-designed Stress Analyzer
|
|
|
|

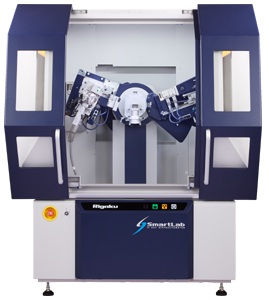

| Rigaku SmartLab Series |
2006 R&D 100 award
θ/θ design for horizontal sample mounting
Closed loop drive system for high resolution scanning
9.0 kW rotating anode generator /3kW X-ray tube
Fully automatic system alignment
Guidance software based automated measurement
CBO for focusing and parallel beam geometries without reconfiguration
In-plane diffraction arm for in-plane measurements without reconfiguration
High resolution optics
SAXS capabilities |
|
|
|

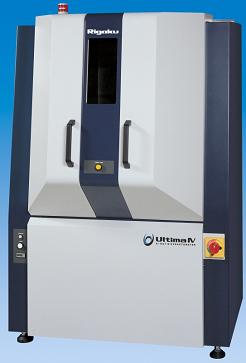

| Rigaku Ultima IV |
θ/θ design for horizontal sample mounting
3kW X-ray tube
CBO for focusing and parallel beamgeometries without reconfiguration
In-plane diffraction arm for in-plane measurements without reconfiguration
High resolution optics
SAXS capabilities
Small size Ergonomic design
Mapping capabilities |
|
|
|

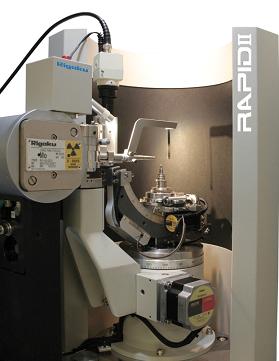

| Rigaku Rapid II |
2009 Reader's Choice
High resolution, Extra-large Aperture
High speed data collection and read-out
18kW rotating anode or 3kW X -ray tube
Micro Focus X-ray optics
Multi-purpose: Powder Diffraciton, Micro-Diffraction, Wide Angle X-ray Scattering and Single Crystal Diffraction |
|
|
|

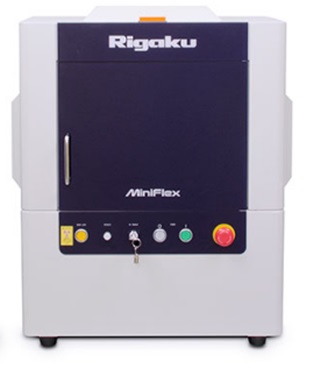

| Rigaku Miniflex |
Easy installation
Cost-effective compact tabletop powder diffractometer |
|
|
|

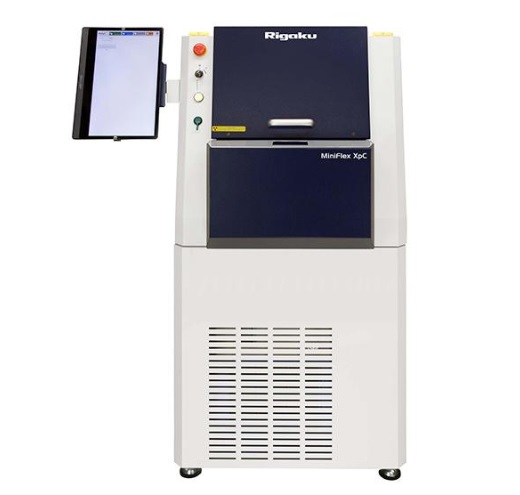

| Rigaku Miniflex XpC |
The world’s smallest footprint for an online diffractometer
100% compatible with sample holders of major online system vendorsr |
|
|
|
| Assing S.p.A. Surface Monitor |
Portable 30kV X-ray tube
Portable 3D XRD-XRF
Step resolution : 0.005' theta(0.01' 2 theta)
Maximum angle:tube 59' detector 52'
Sample positioning: laser interferometer
|
|
|
|

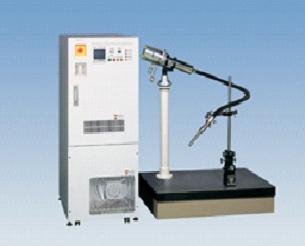

| Rigaku Ultra Low Temperature Attachment: MiniStat
|
| |
|
|
|

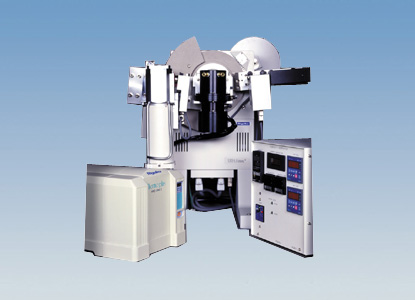

| Rigaku DSC |
| XRD-DSC combined measurement facilitates phase transition study |
|
|
|

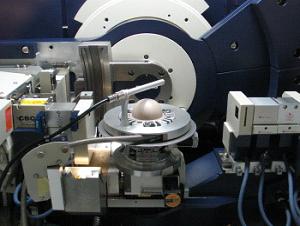

| Rigaku High & Low-Temperature Attachment |
| Applicable for powder, in-plane and out-of-plane measurement forthin film |
|
|
|
| Rigaku Stress Analyzer: PSF-3M |
| |
|
|
|
| Rigaku Stress Analyzer: M SF-3M |
Residual Stress analysis using XRD
Applied to diverse materials, compact design and easy to use |
|
|
|
| Rigaku D/Tex Ultra 1D Detector |
| |
|
|
|
| Dectris Pilatus 100K/R 2D Detector |
| |
|
|
|
| LaboSoft LaboTex Pole Figure Analysis Software |
|
|
|
|

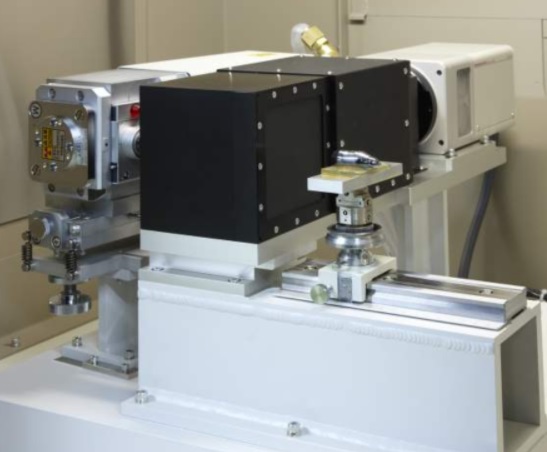

| Rigaku Rasco-BL II HD Laue |
Heavy duty big sample stage
auto mapping function
2D detector
|
|
|
|
| Rigaku Rasco-BL II Laue |
2D detector
|
|
|
